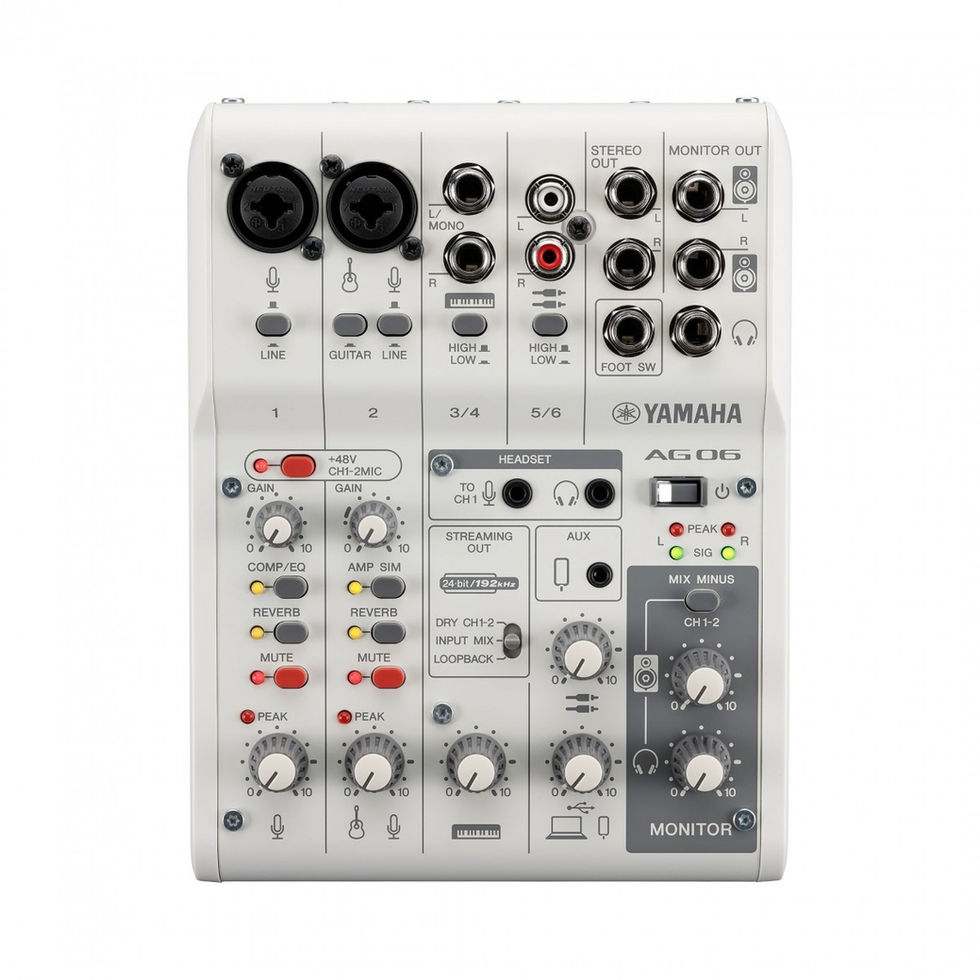

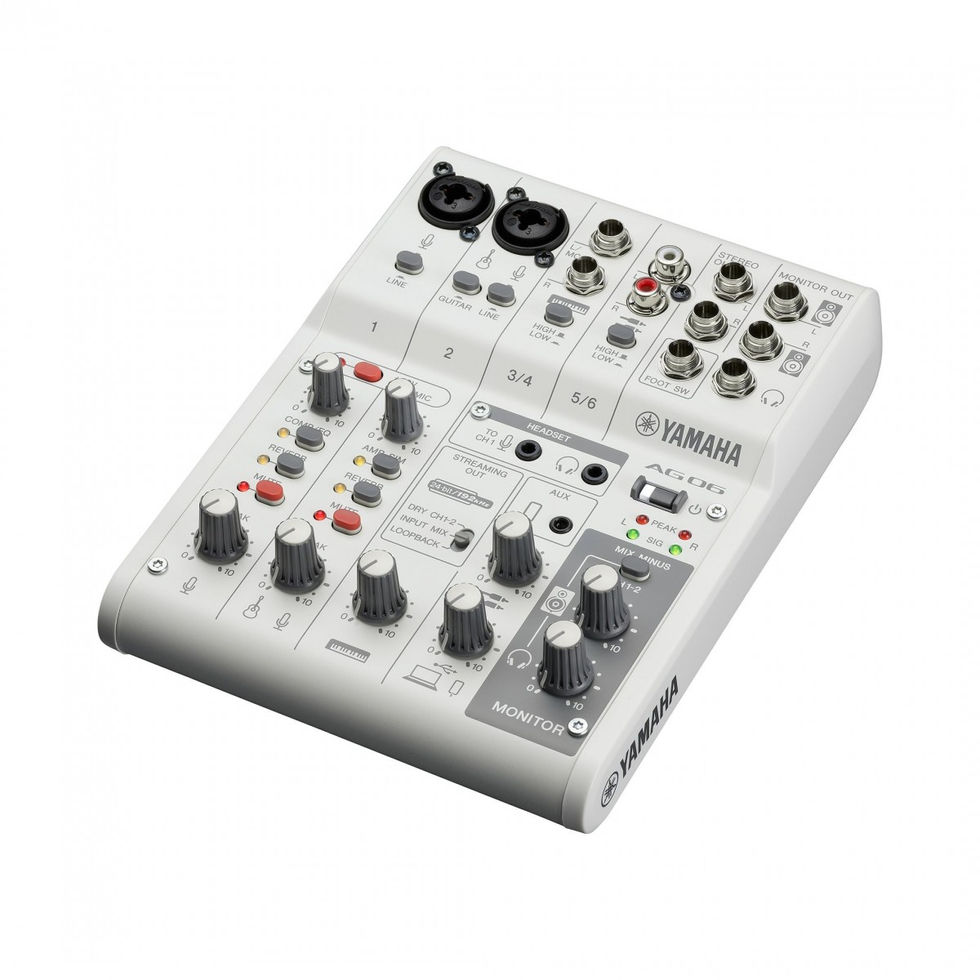

Yamaha AG06MK2 Live Streaming Mixer White

SKU CAG06MK2WH

CAG06MK2WH

Price

£179.00

VAT Included

|

Free Delivery over £149

Yamaha AG06MK2: Flexible, Professional Sound

The Yamaha AG06MK2 combines the intuitive design of professional mixing consoles with exceptional audio quality, making it ideal for live streaming, podcasting, and content creation. Its six-channel mixer and integrated USB interface offer versatile routing and high-resolution 24-bit, 192 kHz audio.



Whether in the studio or on-location, the AG06MK2 provides professional-grade performance with unmatched flexibility, helping creators craft their signature sound.

Quantity

Only 1 left in stock

Features:

  • Two mic/line inputs with +48V phantom power, perfect for condenser mics.
  • Hi-Z input on Channel 2 for direct guitar connections.
  • One-touch DSP effects: Compression, EQ, Reverb, and Amp Simulator.
  • Loopback function for seamless integration of external audio.
  • Bundled Steinberg software: Cubase AI and WaveLab Cast.
  • Compact, portable design with USB-C power and iOS/Android compatibility.

Specifications:

Input & Output Channels

Input Channels

  • Mono [MIC/LINE]: 2

    • CH1: Combo input (Mic with +48V phantom power / Line)
    • CH1: 3.5 mm (1/8”) stereo mini input (Headset mic with plug-in power) (CH1 input and headset mic cannot be used simultaneously)
    • CH2: Combo input (Mic with +48V phantom power / Guitar input / Line)

  • Stereo [LINE]: 3

    • CH3/4: LR Stereo Phone
    • CH5/6: LR Stereo RCA / 3.5 mm stereo mini (AUX)
    • CH7/8: 4-pole mini in/out (TRRS)

  • AUX Input: 1 (Stereo mini)

  • Smartphone Input: 1 (4-pole mini in/out TRRS)

  • USB Input: 1 (4 Stereo Audio Channels – Streaming, Voice, AUX, FROM DAW)

Output Channels

  • PHONES: 2

    • CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES (Cannot be used simultaneously)
    • CH2: PHONES

  • Smartphone Output: 1 (4-pole mini in/out TRRS)

  • MONITOR OUT: 2 (LR Stereo – XLR, 1/4" TRS Phone)

  • STEREO OUT: 1 (MIX – LR Stereo TRS Phone)

  • USB Output: 1

    • 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW)
    • 8 Channels Direct Out (On Windows, ASIO channel and USB 2.0 exist independently. See block diagram for details.)

  • Bus: 4 Stereo

Functions & Features

  • Controls & Buttons:

    • MUTE button ×5
    • CH1 FX preset button ×4
    • Sound pad ×6
    • +48V Phantom power ×2
    • GUITAR (HI-Z) ×1
    • PAD ×2
    • GAIN HIGH/LOW ×1
    • LINE/USB switch ×3
    • STREAMING ON/OFF ×3
    • CUE button ×1
    • MIX MINUS (CH1, CH2)

  • On-Board DSP Processors:

    • Voice Changer
    • Amp Simulator
    • COMP (Compressor)
    • EQ
    • REVERB (SPX Reverb)
    • Delay
    • Ducker
    • Maximizer
      (Configurable via AG Controller software)

USB & Power

  • USB Audio:
    • 8 IN / 14 OUT
    • USB Audio Class 2.0 Compliant
    • Sampling Frequency: Max. 48 kHz
    • Bit Depth: 24-bit
    • Type-C
  • USB DC Power Input: 1 (Type-C, 5V DC, 1.5A)

General Specifications

  • Power Requirements:
    • DC 12V, 1.5A / USB-C 5V, 1.5A
  • Power Consumption: Max. 7.5W
  • Dimensions:
    • Width: 290 mm (11.5")
    • Height: 88 mm (3.5")
    • Depth: 222 mm (8.8")
  • Net Weight: 2.2 kg (4.9 lbs)

Included Accessories

  • AC Adapter (PA-150B)
  • USB 2.0 Cable (1.5 m)
  • Quick Guide
  • Safety Guide
  • Wavelab Cast Download Information
  • Cubase AI Download Information

Operating Conditions

  • Operating Temperature: 0°C to +40°C
